Overview

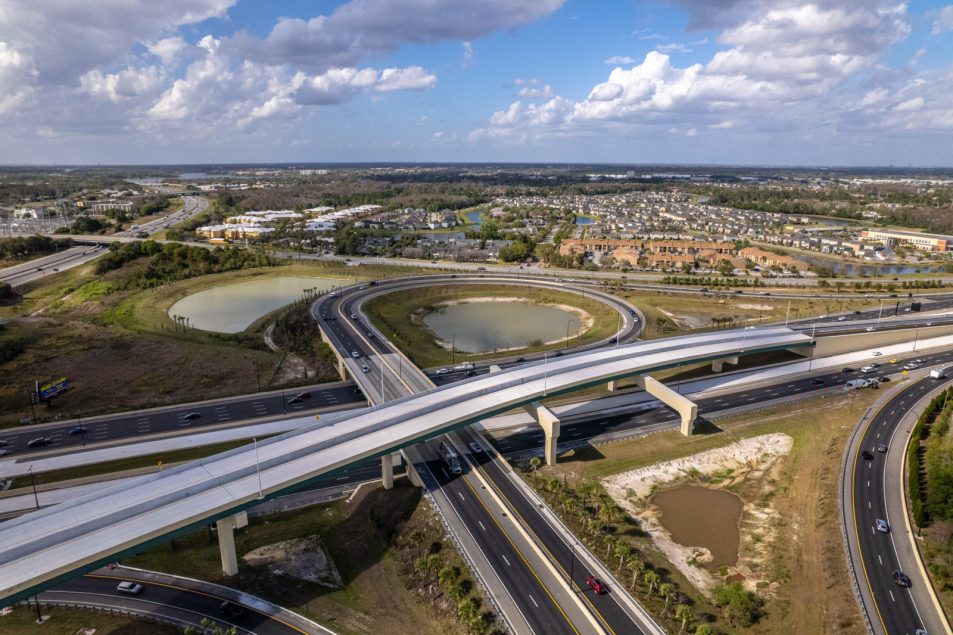

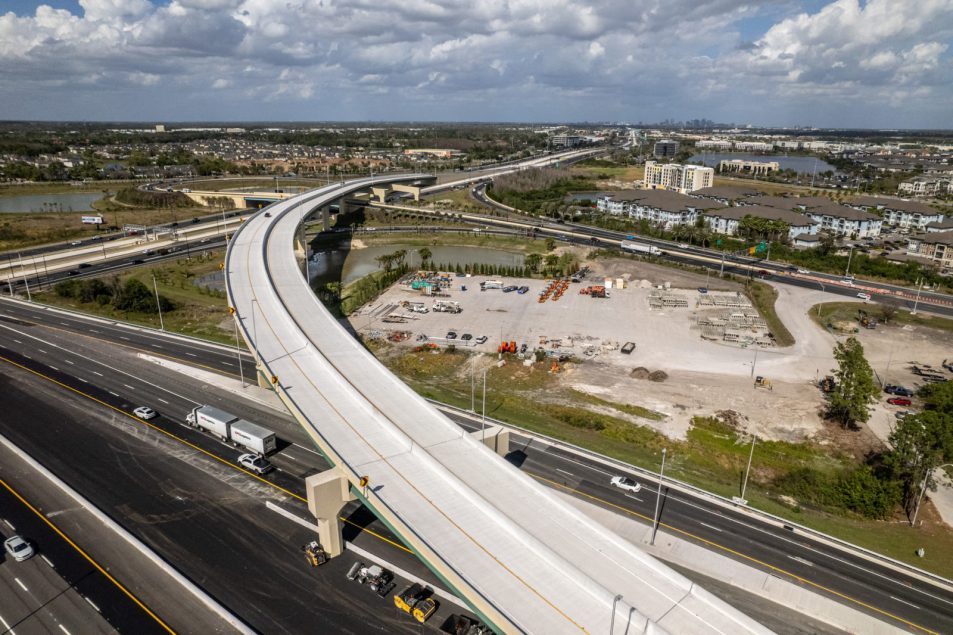

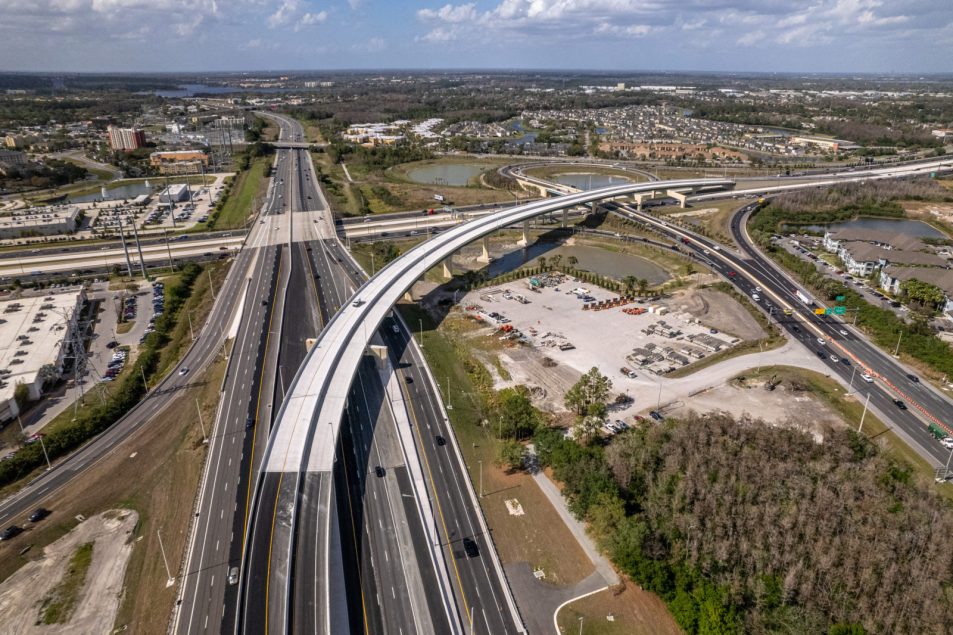

Superior Construction built new express lanes for a portion of Florida Turnpike’s mainline including a direct-connect flyover ramp, approximately 2,000-feet long. In addition to the flyover ramp, miscellaneous roadway improvements, milling, and resurfacing on the mainline were completed between the Beachline Expressway (SR 528) and I-4. The project goal was to improve safety and traffic operations throughout the interchange.

  • Location Orange County, Florida
  • Owner Florida Department of Transportation
  • Delivery Method Design-Build
  • Completion Year 2022
  • Contract Value $80.5 million

Project Highlights

  • 2,000-ft flyover ramp
  • 42,371 SF MSE wall
  • 20,000 LF slipform barrier wall
  • 3.6M lbs reinforced steel
  • 4 new toll sites
  • 7,400 CY substructure concrete
  • 3,800 CY superstructure concrete
  • 40 lane miles asphalt resurfacing
